IPJ,IPT,IPM型啤酒工艺专用泵为单级单吸悬式离心泵，其特点是大流量低转速，不损坏啤酒有效成份，该泵与液体接触的部分均采用1Cr18Ni9Ti材料制造，具有耐腐蚀，清洁卫生等特点，广泛用于饮料、酒类、乳品、粮、糖果和其它液体食品行业，也适用于化工、石油、冶金、电力、造纸、制药、合成纤维等工业部门，可输送介质温度在-20℃～110℃。
本系泵的性能范围(设计点)流量为10～450米3/小时，扬程为10～50米。

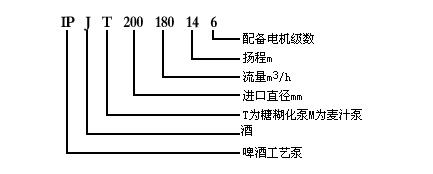

■ 型号说明
IPJ，IPT,IPM型啤酒工艺泵性能参数表
| 型号 | 流量(m3/h) | 扬程(m) | 转速 r/min |
功率 kw |
||
| 额定 | 范围 | 额定 | 范围 | |||
| 65-10-14/6 | 10 | 6-12 | 14 | 12-16 | 960 | 3 |
| 65-10-18/4 | 10 | 6-12 | 18 | 16-20 | 1450 | 3 |
| 65-12-32/4 | 12 | 8-15 | 32 | 29-33 | 1450 | 5.5 |
| 80-18-14/6 | 18 | 11-21 | 14 | 12-16 | 930 | 3 |
| 80-18-18/4 | 18 | 11-21 | 18 | 16-20 | 1450 | 3 |
| 80-25-18/4 | 25 | 15-30 | 18 | 16-20 | 1450 | 4 |
| 80-25-32/4 | 25 | 15-30 | 32 | 29-34 | 1450 | 7.5 |
| 100-25-14/6 | 25 | 15-30 | 14 | 12-16 | 960 | 4 |
| 80-33-18/4 | 33 | 20-39 | 18 | 16-20 | 1450 | 4 |
| 100-33-14/6 | 33 | 20-39 | 14 | 12-16 | 960 | 4 |
| 100-33-32/4 | 33 | 20-39 | 32 | 29-34 | 1450 | 11 |
| 100-40-14/6 | 40 | 24-48 | 14 | 12-16 | 960 | 4 |
| 100-40-18/4 | 40 | 24-48 | 18 | 16-20 | 1450 | 5.5 |
| 100-40-32/4 | 40 | 24-48 | 32 | 29-34 | 1450 | 11 |
| 125-60-14/6 | 60 | 36-72 | 14 | 12-16 | 960 | 5.5 |
| 125-60-18/4 | 60 | 36-72 | 18 | 16-28 | 1450 | 7.5 |
| 125-60-32/4 | 60 | 36-72 | 32 | 29-34 | 1450 | 15 |
| 125-80-14/6 | 80 | 48-96 | 14 | 12-16 | 960 | 11 |
| 125-80-18/4 | 80 | 48-96 | 18 | 16-20 | 1450 | 11 |
| 125-80-32/4 | 80 | 48-96 | 32 | 29-34 | 1450 | 18.5 |
| 125-80-50/4 | 80 | 48-96 | 50 | 45-53 | 1450 | 30 |
| 125-120-18/4 | 120 | 70-140 | 18 | 16-20 | 1450 | 15 |
| 125-120-30/4 | 120 | 72-140 | 30 | 27-33 | 1450 | 18.5 |
| 125-120-45/4 | 120 | 72-140 | 45 | 42-48 | 1450 | 30 |
| 150-120-14/6 | 120 | 72-140 | 14 | 12-16 | 960 | 11 |
| 150-180-18/4 | 180 | 108-215 | 18 | 16-20 | 1450 | 18.5 |
| 150-180-32/4 | 180 | 108-215 | 32 | 29-34 | 1450 | 30 |
| 150-180-50/4 | 180 | 108-210 | 50 | 45-53 | 1450 | 55 |
| 150-220-18/4 | 220 | 132-264 | 18 | 16-20 | 1450 | 22 |
| 150-220-30/4 | 220 | 132-264 | 30 | 26-32 | 1450 | 30 |
| 150-220-46/4 | 220 | 132-264 | 46 | 43-49 | 1450 | 55 |
| 150-300-18/4 | 300 | 180-360 | 18 | 16-20 | 1450 | 30 |
| 150-300-32/4 | 300 | 180-360 | 32 | 29-34 | 1450 | 45 |
| 200-300-50/4 | 300 | 180-360 | 50 | 45-53 | 1450 | 75 |
| 200-300-14/6 | 300 | 180-360 | 14 | 12-16 | 960 | 22 |
| 200-180-14/6 | 180 | 108-215 | 14 | 12-16 | 960 | 18.5 |
| 200-220-14/6 | 220 | 132-264 | 14 | 12-16 | 960 | 18.5 |
| 200-360-18/4 | 360 | 216-420 | 18 | 16-20 | 1450 | 30 |
| 200-360-32/4 | 360 | 216-420 | 32 | 29-34 | 1450 | 55 |
| 200-360-50/4 | 360 | 216-420 | 50 | 45-53 | 1450 | 90 |
| 250-360-14/6 | 360 | 216-420 | 14 | 12-16 | 960 | 30 |
| 250-450-14/6 | 450 | 270-490 | 14 | 12-16 | 960 | 37 |
| 250-450-18/4 | 450 | 270-490 | 18 | 16-20 | 1450 | 37 |
| 250-450-28/4 | 450 | 270-490 | 28 | 25-30 | 1450 | 55 |
